2005 Manco XTK-713E
$2906.00*
www.mancoprod.com
*Subject to dealer prep, setup and freight.

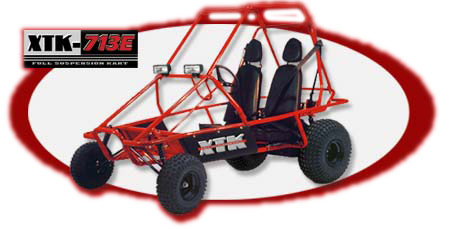

The new XTK 713E is Manco's flagship machine. Many were looking for the maximum amount of horsepower they could get and this answers their request. We took the same XTK frame as the 707C and 710E and added the 13.5HP Robin/Subaru engine. With 35% more power than the 710E, this kart can really pull with 404cc's of engine displacement. Electric start and dual running lights are standard. Shown with optional rear fenders.
Target Market 16 yrs. +
|
Engine Robin
Warranty 3 years
Type 13.5 HP Air cooled, 4-cycle, OHV
Displacement 404cc
Power (BHP @ RPM) 13.5 @ 4000
Torque 20.98 @ 2600
Starting System Electric Start w/recoil backup
Fuel Capacity 1.8 gallons
Spark Plugs Champion N9Y
NGK BP6ES
Transmission
Type: Dual Wheel Drive Torque Converter
Chain Size #420 1/2" Pitch
Tires & Wheels
Front 16x6.50x8" Knobby
Rear 22x11x8" ATV
Frame
Type - heavy gauge - jig welded 1-1/4" Main Frame
Finish Baked Powder Coat
Suspension
Front Independent with coil-over shocks
Rear Swing arm with coil-over shocks
|
|
Brake
Type 8" Disc w/parking brake
Performance
Maximum Speed (Approx) 36-38 mph
Fuel Consumption (Approx) 30-50 mpg
Terrain Hills, slopes, grass, dirt, mud and sand.
Special Features
Seat Fingertip slide adjustable seat
Restraint System Three-Point Shoulder/ Lap Belts
Engine Stop Switch In Steering Wheel
Custom Bars 1 1-4 " Full Brush Bars
Safety Whip Flag
Lights Dual running lights
Dimensions
Curb Weight 472 lbs.
Maximum Rider Weight 400 lbs.
Gross Vehicle Weight 872 lbs
Vehicle: Overall Length 93.5"
Width 52.5"
Height 61" |
Manco Warranty
Safety Statement
Manco karts comply with all standards for kart safety and performance per ASTM: F1928-99, F2011-00.
Safety Tip: Be a responsible rider and always be aware of others
Always wear a helmet, eye protection, and other protective clothing.
|
|
|
|
|
|
