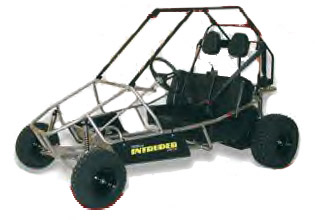

2005 Manco Intruder GFX
$1499.00*
www.mancoprod.com
*Subject to dealer prep, setup and freight.
Model Number 606B
(This price is excluding freight & set-up)
Coming early 2005! The all new two seat Intruder GFX brings a "Full Suspension" kart to the Intermediate size range. Smaller and lighter than the big brother XTKs, the 606 is ideal for teenagers and smaller adults.With the Robin 6.5 HP engine it offers tremendous performance with it's lighter weight. With torque converter dual wheel drive and 8" of ground clearance, this machine is ready to get it on!
Recommended ages 12 yrs. + |
|
Engine Robin
Type 6.5 HP Air cooled, 4-cycle, OHV/OHC
Displacement 169cc
Power (BHP @ RPM) 6.5 @ 4000
Torque 8.3 @ 2800
Starting System Recoil
Fuel Capacity .95 gallons
Oil Capacity 1.3 pints
Spark Plugs Champion RL86C
NGK BR6HS
Transmission
Type Torque Converter
Drive Dual wheel drive
Chain Size 1/2" Pitch . . . #420
Tires & Wheels
Front 145/70 x 6" Knobby
Rear 18/9.5 x 8" ATV
Frame
Type 1" HREW Steel Tube
Finish Baked Powder Coat
Suspension
Front - Coil over shocks Independent Swing Arm
Rear - Coil over shocks Swing Arm |
|
Brake
Type: Foot Operated 6" Disc with Caliper w/parking brake
Performance
Maximum Speed (Approx) 26-28 mph
Fuel Consumption (Approx) 30-50 mpg
Terrain Hills and slopes, grass, mud, sand
Special Features
Seat Dual seat with adjustable slide
Restraint System Three-Point Shoulder/ Lap Belts
Engine Stop Switch In Steering Wheel
Custom Bars 1" Full Brush Bars
Safety Whip Flag
Dimensions
Curb Weight 301 lbs.
Maximum Rider Weight 250 lbs.
Gross Vehicle Weight 551 lbs
Vehicle: Overall Length 88.5"
Width 46"
Height 53.5"
Seat to Pedals 33"-38" |
Manco Warranty
Safety Statement
Manco karts comply with all standards for kart safety and performance per ASTM: F1928-99, F2011-00.
Safety Tip: Be a responsible rider and always be aware of others
Always wear a helmet, eye protection, and other protective clothing.
|
|
|
|
|
|
|
