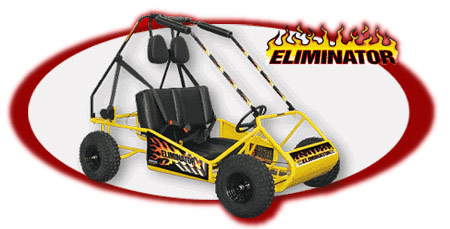

2005 Manco Eliminator
$860.00*
www.mancoprod.com
*Subject to dealer prep, setup and freight.
Model Number 425B
The all new "Eliminator" brings a fast and exciting look to the Entry Level category. With a whole new design featuring high color graphics, side panels, curved dash, thickly padded contoured seats and overhead headrests, this new kart screams "hot"! Powered by the formidable 5HP Robin/Subaru engine for long life and strong performance.
Target Market 12+
|
|
ENGINE
Type Robin, Air cooled, 4-cycle, OHV/OHC, 5 HP, single cylinder
Displacement 126 cc
Power (BHP @ RPM) 5.0 @ 4000
Torque (FT-LBS. @ RPM) 5.9 @ 2800
Starting System Recoil
Carburetion Float with prime
Air filtration Pleated paper cartridge
Ignition Electronic
Lubrication Splash
Exhaust System Aluminized muffler with heat shield
Oil Capacity 1.3 pints
Spark Plugs Champion RL86C
NGK BR6HS
Fuel Capacity .66 gallons
TRANSMISSION
Type-Centrifugal clutch Single ratio
Chain size-3/8" pitch NC 35
AXLES
Rear 1" Hardened alloy steel
TIRES AND WHEELS
Low pressure knobby, 6" steel rim 145/70 x 6"
|
|
FRAME
Type-heavy gauge, jig welded 1" HREW Steel
Finish Baked powder coat
BRAKE
Type-foot operated 4" drum with parking brake
PERFORMANCE
Max speed, approx. 22-24 MPH
Fuel consumption 30-50 MPG
Terrain Flat to gently sloped
SPECIAL FEATURES
Seat Dual seat with adjustable slide
Restraint system Three-point shoulder/lap belts
Engine stop switch In steering wheel
Brush bars 1" HREW Steel
Safety Whip flag
DIMENSIONS
Curb weight 224 lbs.
Maximum rider weight 250 lbs.
Gross vehicle weight 474 lbs.
Vehicle-overall 61.25"L x 40.25"W x 48"H
Seat to pedals 33.5"-37"
|
Manco Warranty
Safety Statement
Manco karts comply with all standards for kart safety and performance per ASTM: F1928-99, F2011-00.
Safety Tip: Be a responsible rider and always be aware of others
Always wear a helmet, eye protection, and other protective clothing.
|
|
|
|
|
|
|
