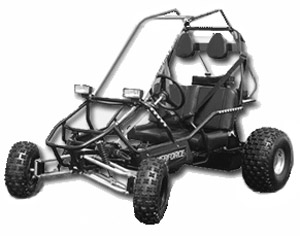

2005 Manco "Aerforce F-211"
Model Number 637
M.S.R.P: $2,199
(This price is excluding freight & set-up)
www.mancoprod.com

Target Market: 12 yrs. +
Engine: Subaru
Type: 7.0 HP Air cooled, 4-cycle, OHV/OHC
Displacement: 211cc
Power (BHP @ RPM): 7.0 @ 4000
Torque: 10.26 @ 2400
Starting System: Pull recoil with manual choke
Fuel Capacity: .95 gallons
Oil Capacity: 20 oz.
Spark Plugs: Champion RL86C
NGK BR6HS
Transmission Type: Torque Converter
Drive: Dual wheel drive
Chain Size: #420 1/2" Pitch
Tires & Wheels
Badlands: Front/Rear
16 x 6.5 x 8" / 18 x 9.5 x 8"
Frame Type - heavy gauge - jig welded
1.25" HREW Steel
Rear axle :1" hex hardened alloy steel
Finish: Baked Powder Coat
Advanced Geometry Suspension
Front: Dual A-arm
Coil-over shocks
Rear: Frame mounted engine
Floating swingarm with coil-over shocks
Brakes
Type: Foot Operated
8.75" hydraulic disc with parking brake
Performance
Maximum Speed (Approx)
30-32 mph
Fuel Consumption (Approx)
30-50 mpg
Terrain: Hills, slopes, grass, mud and sand
Special Features
Dual Seat
Fingertip slide adjustable
Restraint System: Dual 3 point retractable safety belts
Engine Stop Switch/Dual
On engine and in steering wheel
Brush Bars: 1.25" HREW Steel
Safety Whip Flag
Lights
Dual running lights
Dimensions
Curb Weight: 403 lbs.
Maximum Rider Weight: 350 lbs.
Gross Vehicle Weight: 753 lbs.
Vehicle: Overall Length: 89.5"
Width: 50.75"
Height: 59.5"
Seat to Pedals: 35"-39"
Wheelbase: 71"
Ground Clearance: 12"


Manco Warranty Safety Statement Manco karts comply with all standards for kart safety and performance per ASTM: F1928-99, F2011-00. Safety Tip: Be a responsible rider and always be aware of others Always wear a helmet, eye protection, and other protective clothing.
